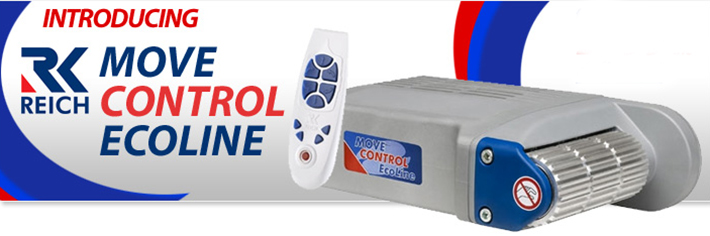

The brand new Move Control EcoLine caravan motor mover delivers all the advanced features Reich is famous for in a compact lightweight design. The EcoLine offers extremely low height and a very low weight.
But don't be deceived by the size, the Reich EcoLine still delivers a powerful punch. Driving the caravan wheels via wide, large diameter rollers that efficiently transfer the power.
Like all Reich models the EcoLine is controlled by a simple to understand remote, the functions including on/off, engaging/disengaging rollers, and all maneuvering procedures.
The Reich EcoLine weighs in around 35 kg and is perfect for single axle caravans or caravans with a low ground clearance.
Fits most types of chassis. MoveControl EcoLine clamps onto the chassis - no drilling or welding required.
The EcoLine does not interfere with the operation of the shock absorbers and may be fitted behind or in front of the wheels.
The EcoLine uses a direct drive, no gear wheels or chains to go wrong.
Electric actuation is standard, allowing the rollers to be engaged using the remote control.
Long term investment: When changing caravans, the MoveControl EcoLine can be easily transferred.
SOFTSTART and SOFTSTOP electronics enables precise movement and greater control over any ground - millimeter by millimeter - as well as quick and easy hitching and unhitching.
The sophisticated electronic control minimizes the chassis stress
The EcoLine will stop your caravan, even on a slope.
Specifications
Designation
Move Control EcoLine
Operational Voltage
12 Volt DC
Average Current Consumption
30 Ampere
Max Current
Consumption
160 Ampere
Speed
25cm per sec. Approx.
Weight
approx. 35kg
Permissible
Overall Weight
1800kg
Permissible
Overall weight
on 35% Gradient
1400kg
Power Source
12v
Warranty
5yrs
For more information click here for a link to the Reich Move Control Ecoline web site.
